EPP1342-0001 | EtherCAT P Box, 2-port EtherCAT P junction
2 | Rx+/GNDP
3 | Rx-/UP
4 | Tx-/US
2 | Rx+/GNDP
3 | Rx-/UP
4 | Tx-/US
2 | Rx+/GNDP
3 | Rx-/UP
4 | Tx-/US
EPP1342-0001 | EtherCAT P Box, 2-port EtherCAT P junction

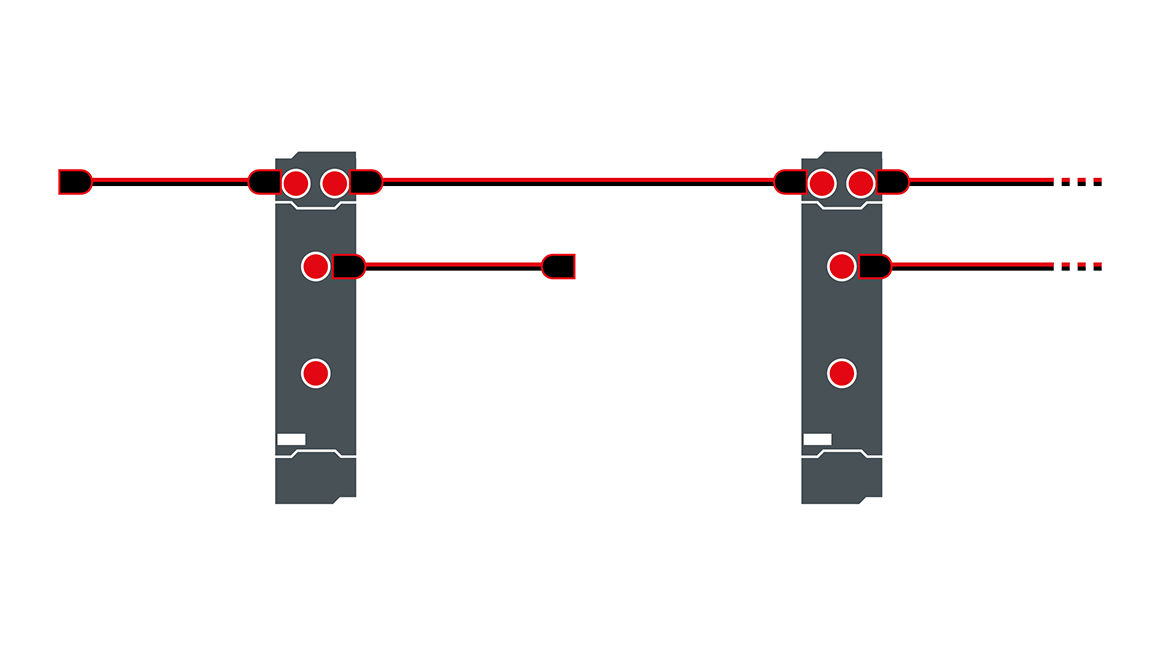

The EPP1342-0001 EtherCAT P junction in IP67 are available for flexible topology configurations. The current carrying capacity of 3 A per EtherCAT P segment for US and UP already enables a wide range of sensors and actuators to be used. For larger or more branched machines/systems a power supply boost may be required. The EPP1332-0001 EtherCAT P junction with refresh feature can be used for feeding in US or UP at any point in the system.
The EPP1342-0001 should be used for topological branches without the need for voltage boosting. All infrastructure box modules feature status LEDs for EtherCAT, US and UP.
Product status:
regular delivery
Product information
| Technical data | EPP1342-0001 |
|---|---|
| Protocol | EtherCAT P |
| Bus interface | M8 socket, P-coded, shielded |
| Task within EtherCAT system | 2-port EtherCAT P junction |
| Number of channels | IN: 1 x EtherCAT P, OUT: 3 x EtherCAT P |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Total current | max. 3 A per US and UP for all EtherCAT P ports in total |
| Current consumption from US | typ. 100 mA |
| Distributed clocks | – |
| Distance between stations | 100 m (100BASE-TX) |
| Data transfer rates | 100 Mbit/s |
| Configuration | not required |
| Weight | approx. 165 g |
| Operating/storage temperature | -25…+60°C/-40…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL |
| Housing data | 8 x M8, 4 x M12 |
|---|---|
| Dimensions (W x H x D) | 30 mm x 126 mm x 26.5 mm |
| Material | PA6 (polyamide) |
| Installation | 2 fixing holes 3.5 mm diameter for M3 |
