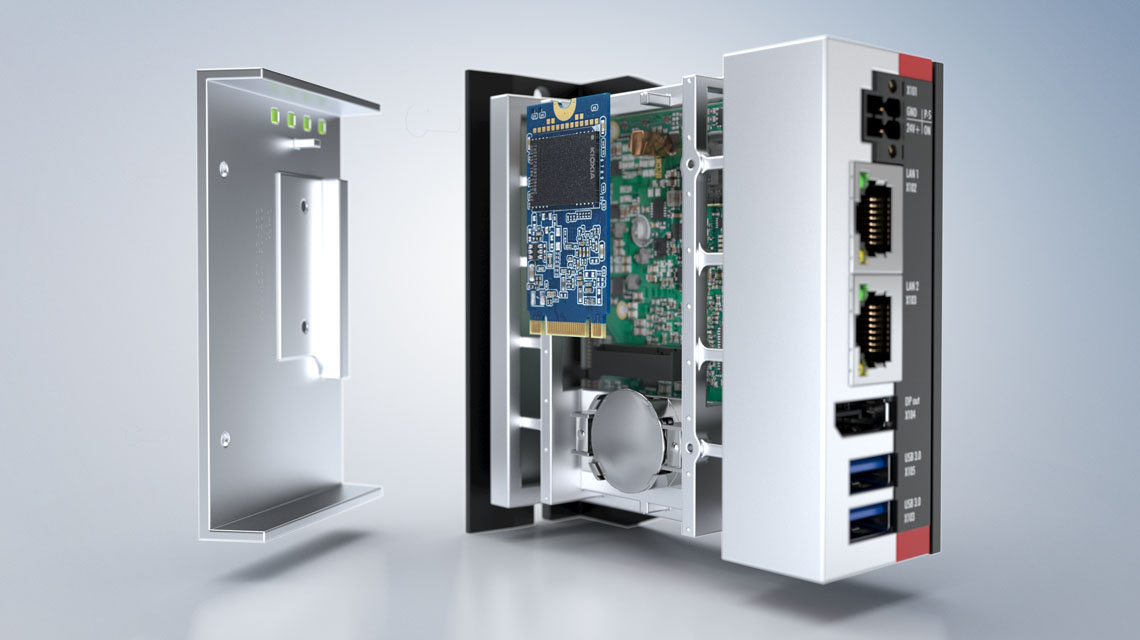

Industrial flash memory devices for Beckhoff Industrial PCs

Reliability is a top priority for data storage in industrial environments. Unlike HDDs, industrial flash memory has no rotating components, ensuring secure data storage and reliable operation even in tough operating environments. Flash memory devices used in Beckhoff Industrial PCs offer a number of advantages over conventional hard disks and memory devices with TLC or QLC memory architecture, making them ideal for use in industrial environments and demanding applications.

Thanks to 3D pSLC storage technology, the SSDs and CFast cards have a long service life with over 50,000 write and erase cycles. Write and read speeds are optimized to achieve faster data processing. A further benefit is that the 3D NAND architecture, where the memory cells are stacked vertically on top of each other, ensures optimum storage densities of the SSDs in pSLC mode.

Further advantages of industrial memory devices

long-term data retention time for reliable data storage
reduced susceptibility to data errors due to loss of charge or interference between the memory cells
reliable detection of bit states thanks to pSLC memory architecture
powerful error correction algorithms for data integrity

outstanding speeds thanks to 1-bit memory architecture
NVMe software protocol: direct communication between SSD and CPU for maximum performance
lower latency times: improved response time and system performance
3D memory architecture: optimum memory densities for space-saving designs

over 50,000 P/E cycles to ensure a long service life with high write performance
High-performance flash memory controllers ensure consistent functionality of the memory cells through intelligent wear leveling.
no rotating parts means no mechanical failures or data loss
minimized downtime: improved system availability and productivity

Memory devices with pSLC memory architecture are the optimum solution for applications with high demands on system performance and service life.
ideal for applications with high data rates, such as image processing, machine control, and data acquisition
a robust solution for harsh industrial environments: extended temperature range along with high shock and vibration resistance
The pSLC memory architecture is the perfect solution when the exact write load of the application is unknown: ‘stress-free flash’.

Industrial SSDs from Beckhoff offer unparalleled reliability, maximum performance, and an outstanding service life. They are the ideal choice for use in demanding industrial environments and applications that need maximum data availability and system performance.

FAQ

With pSLC storage technology, TLC cells are used as SLC cells via firmware. This means that only one bit is stored using two charge levels per memory cell. As a result, the service life is extended since minor charge shifts have no impact on the bit state of the memory cell. When reading out the memory cell, the two charge states, 0 and 1, are easier to recognize without errors than eight different charge levels of the TLC data storage. The switch from TLC to pSLC increases the service life of the memory cells by a factor of over 16, with P/E cycles increasing from 3,000 to 50,000.

By defining different charge levels of the charge trap layers, several bits can be stored in a single flash cell. With modern technology, up to four bits can be stored in a single cell. The different memory architectures are SLC, MLC, TLC, and QLC. With TLC memory cells, three bit states are stored in a single cell.

Flash memory cells are effectively MOSFET transistors with an additional layer. Insulated by an oxide layer, this charge trap layer can store charge on a non-volatile basis and preserve a bit state in the process. To program the memory cell, a high electrical voltage is applied to the control gate, which injects individual electrons from the channel layer into the charge trap layer. A reference voltage is applied to the control gate to read out the bit status. If the charge trap layer is charged, the charge counteracts the current flow through the transistor, which corresponds to bit state 0. If no charge is present in the charge trap layer, the current can flow through the transistor, indicating a bit state of 1.

When storing several bits in a memory cell, errors can occur when reading out the bit states, as the distances between the individual voltage levels are small. The more bit states are stored per cell, the shorter the service life of an SSD. What’s more, the number of read operations per memory cell increases, as several reference voltages have to be applied to read the bit status of a cell due to the different charge levels. This reduces the speed at which data is read out.

The application of high voltages means every write and erase operation degenerates the oxide layer, causing irreparable damage to the memory cell in the process. As a result, flash memory loses its reliable data storage properties over time. Another side effect is that the voltages applied when reading memory cells can negatively impact the charge state of neighboring cells.

The flat 2D NAND memory architecture reaches its capacity limits as data volumes increase. The high number of memory cells results in reduced spacing, which can cause interference and leakage currents between neighboring cells. The 3D NAND flash memory architecture makes it possible to increase the number of memory cells per area by stacking the planar structures vertically. This means that the storage capacity of an SSD can be significantly increased without affecting the service life of the flash cells.

Integration via the NVMe (Non-Volatile Memory Express) software protocol enables direct communication between the SSD and CPU via the high-speed PCIe socket so that the full performance of the SSD can be utilized. Using parallel PCIe lanes also ensures smooth data transfer and very low latency times. This reduces charging times, speeds up boot processes, and ensures smoother system performance overall.
